MartinLoganamplifiers
MartinLogan MP500
Equipment Sales & Professional Installation
MPN: MP500
- Power Density
- Powerful Pairings
- Fast Speaker Connection
- The Perfect Match
- Input Flexibility
- Cool Under Pressure
Specifications
Specifications
| Continuous Watts x Channel @ Ohms | 130W x 2 @ 8ohms, 250W x 2 @ 4ohms, 500w x 1 @ 8ohms |
|---|---|
| Fan Cooled | Yes |
| Bridgeable | Yes |
| Amplifier Frequency Range | 20Hz-20kHz +1/-3dB |
| Output | 12V Trigger Passthrough |
| Included Accessories | Quick Start Guide, Power Cord, Rack Mount Ears, Connector Bracket, and Hardware Pack |
| Design | Ultra-Class-D Multi-Purpose Two-Channel Power Amplifier |

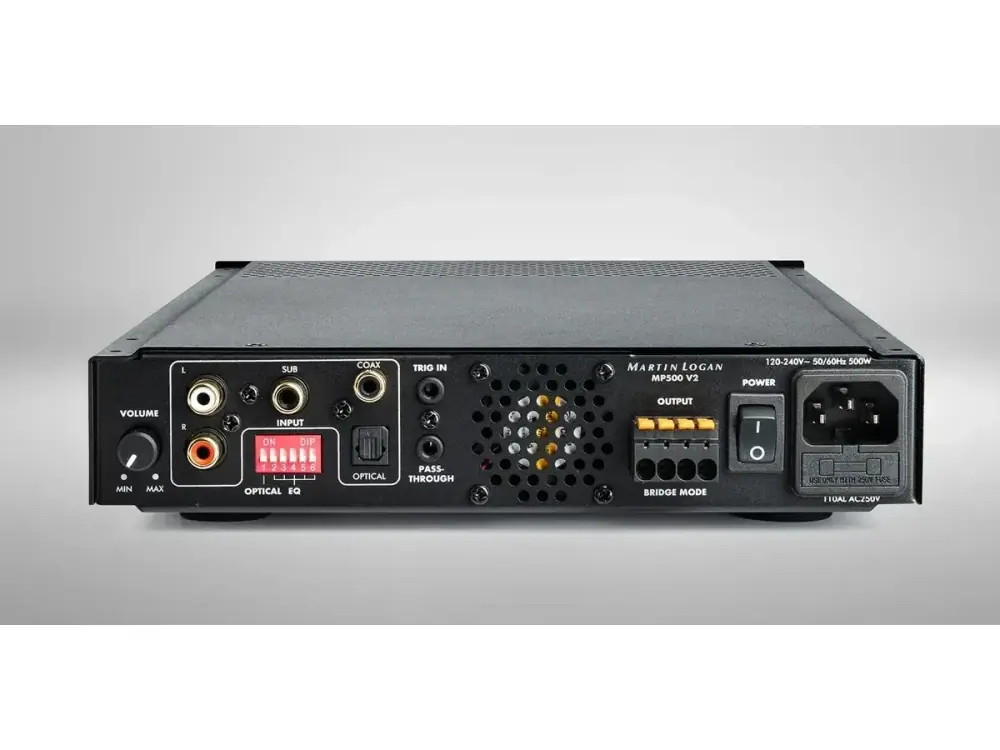

| Controls (back panel) | Main Power Switch (On/Off), Volume Control (Min/Max), Preset Profile Selection (Dip Switches Position 2-6) (32 Presets), Coax or Optical Selection (Dip Switch Position 1) |
| Amplifier | Up to 500 Watts (when Bridged) |
| Inputs | Stereo RCA, Sub RCA, 12V Trigger, Digital Optical, Digital Coax, USB C (Firmware Updates) |
| Weight | 6 lbs (2.72 Kg) |
| Dimensions (H X W X D) (With feet attached. 1U rack height with feet removed) | 1.97" x 8.5" x 12.2" (5cm x 21.6cm x 31cm) |
