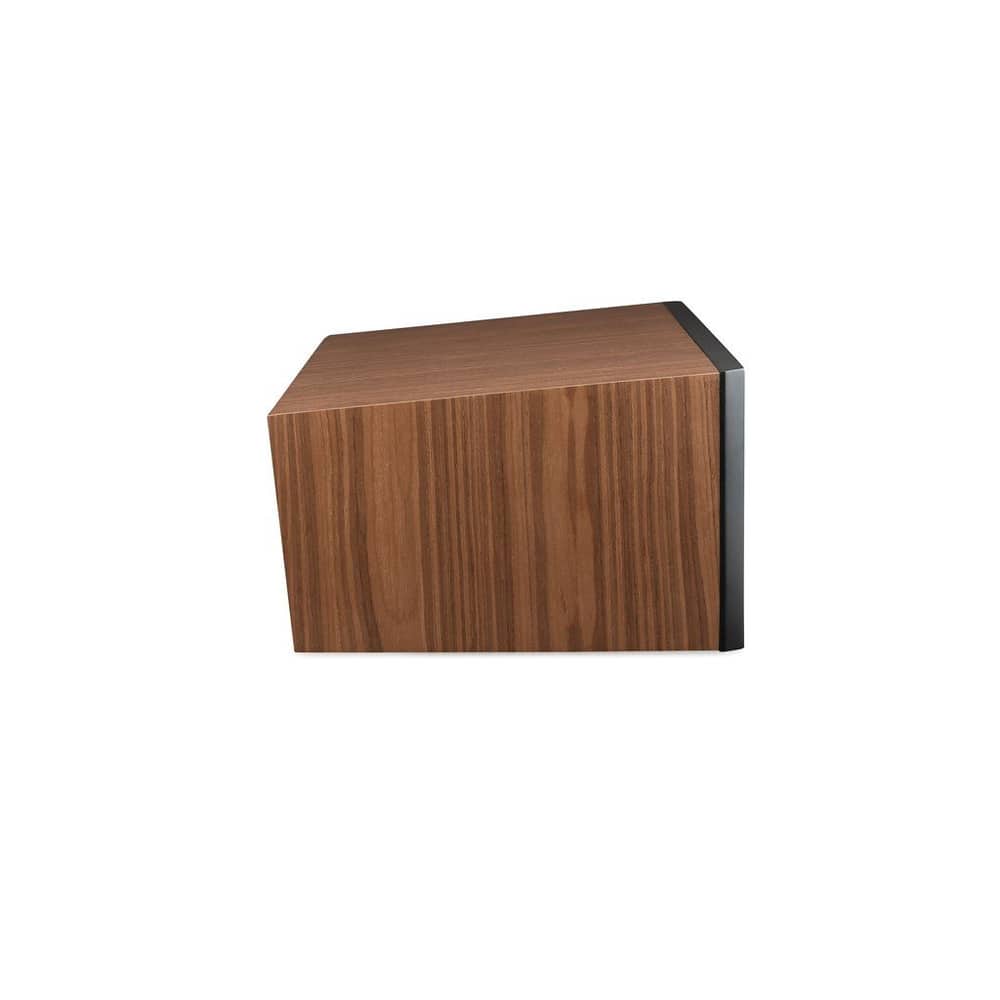

Motion XT C100
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in The Woodlands, TX. System design, screen matching and calibration included in the quote.
How we specify in The Woodlands
The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the Motion XT C100 specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.
Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 8" x 24" x 14-1/2"; 20.3cm x 61cm x 36.8cm |
|---|---|
| Frequency Response | 42 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 45° |
| Recommended Amplifier Power | 20 - 300 watts |
| Sensitivity | 93 dB |
| Impedance | 5 ohms |
| Crossover Frequency | 1,300 Hz, 2,500 Hz (2.5-way) |

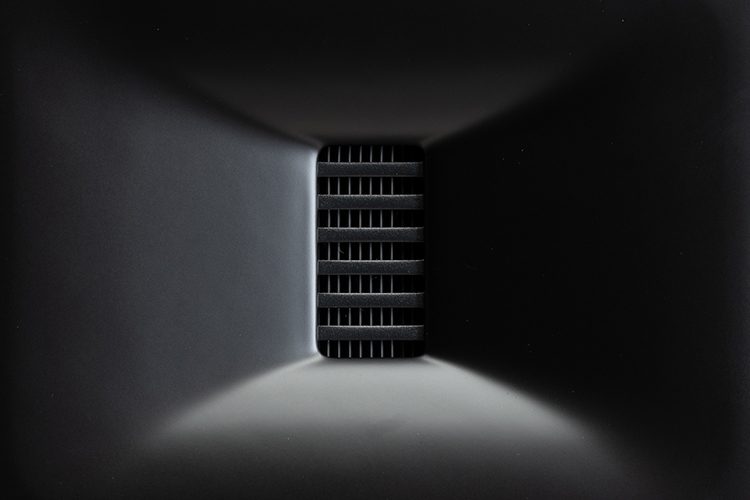

| High Frequency Driver | 1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm |

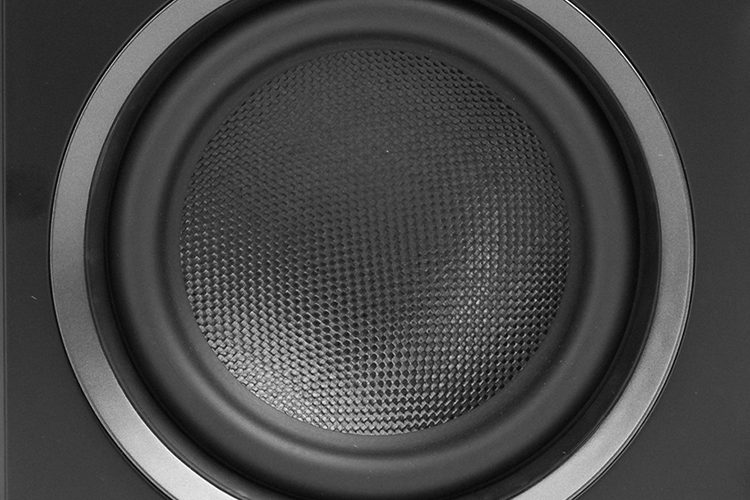

| Mid-Frequency Drivers | 2x 6.5" (16.5cm) Nomex Reinforced Kevlar cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design. |
| Cabinet | Rear Ported |
| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 34lbs / 15.4kg |

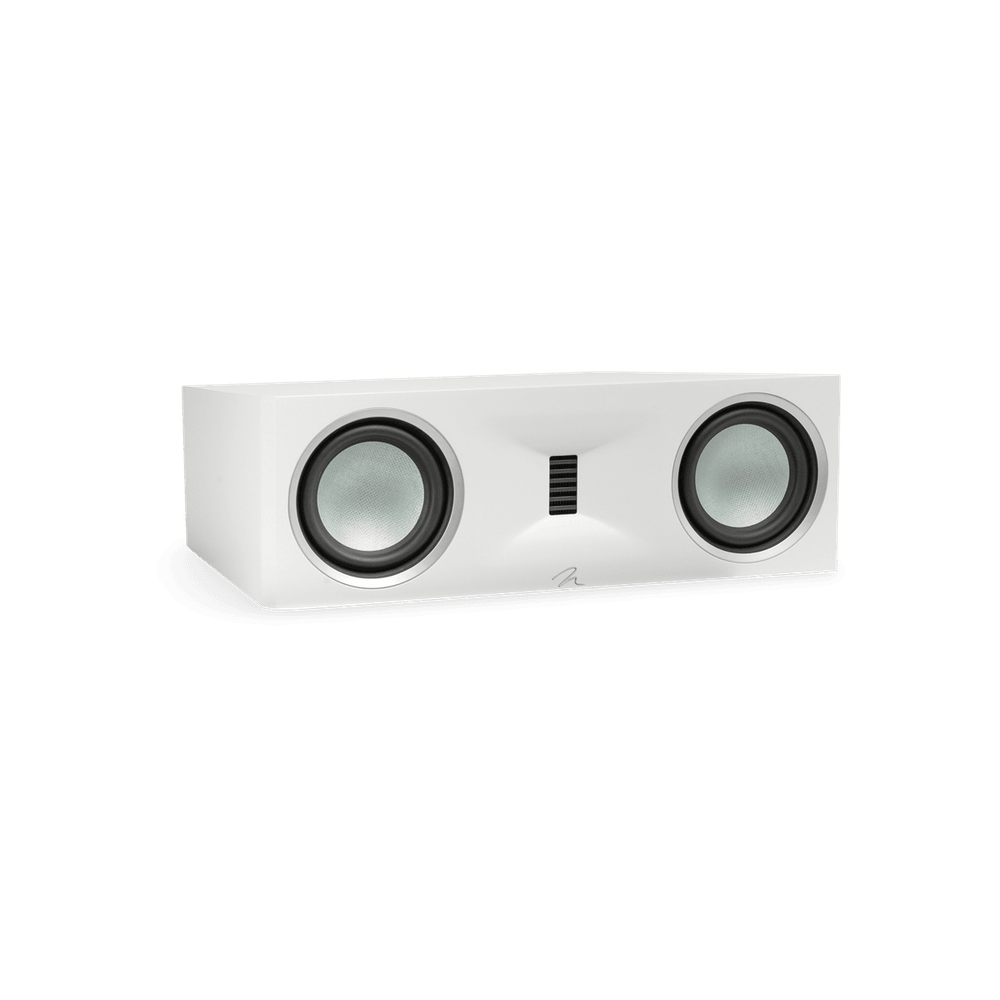

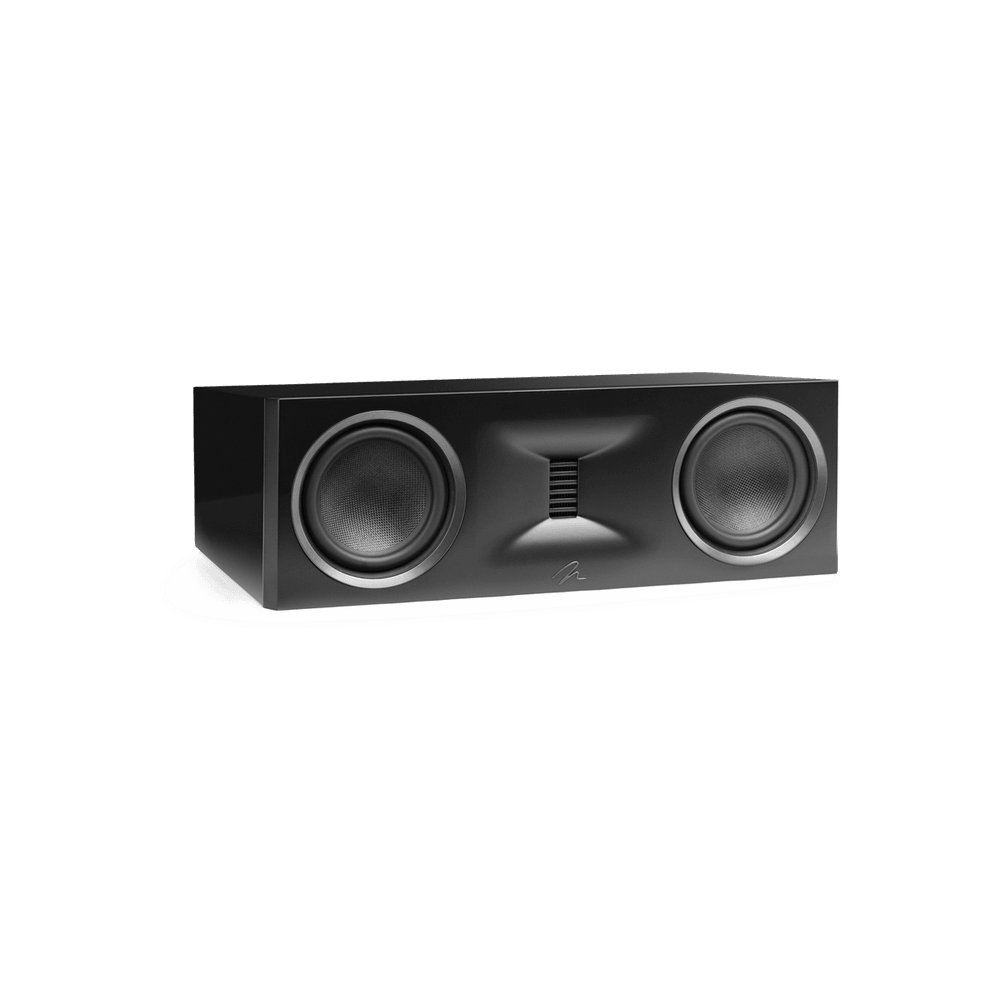

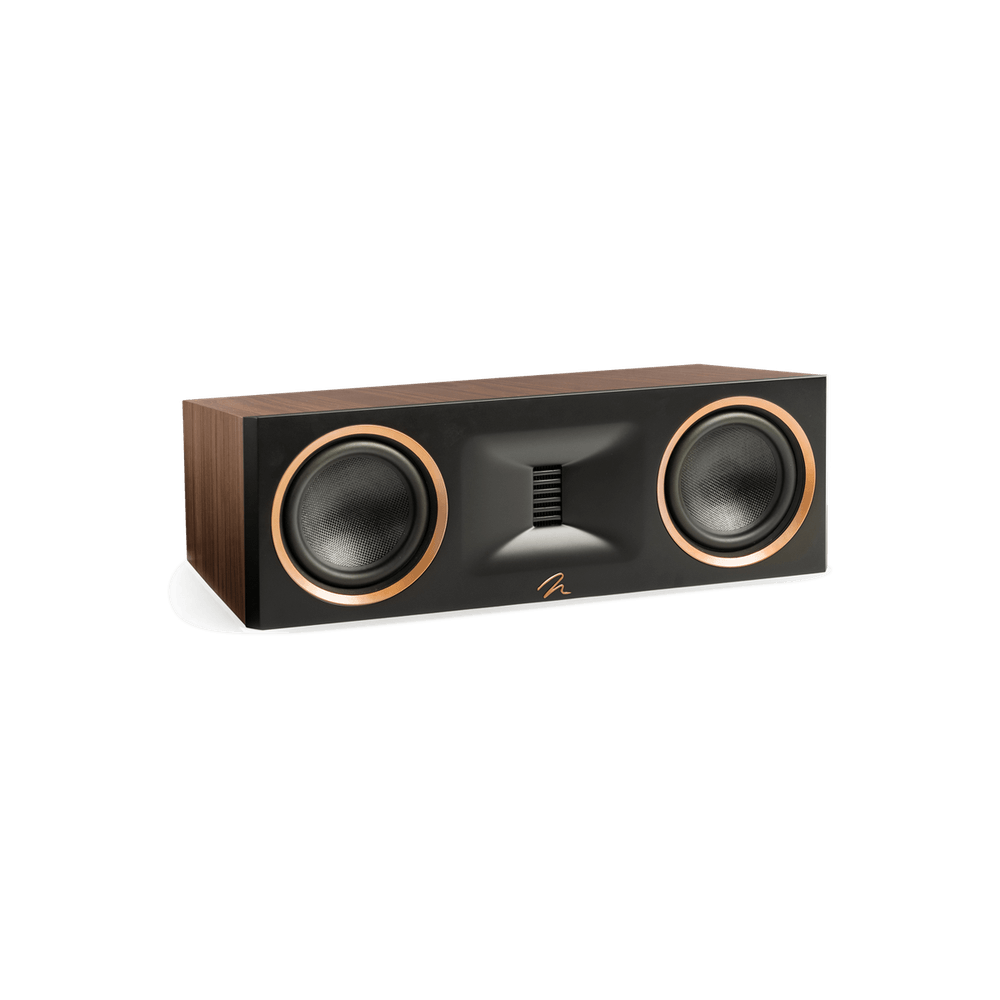

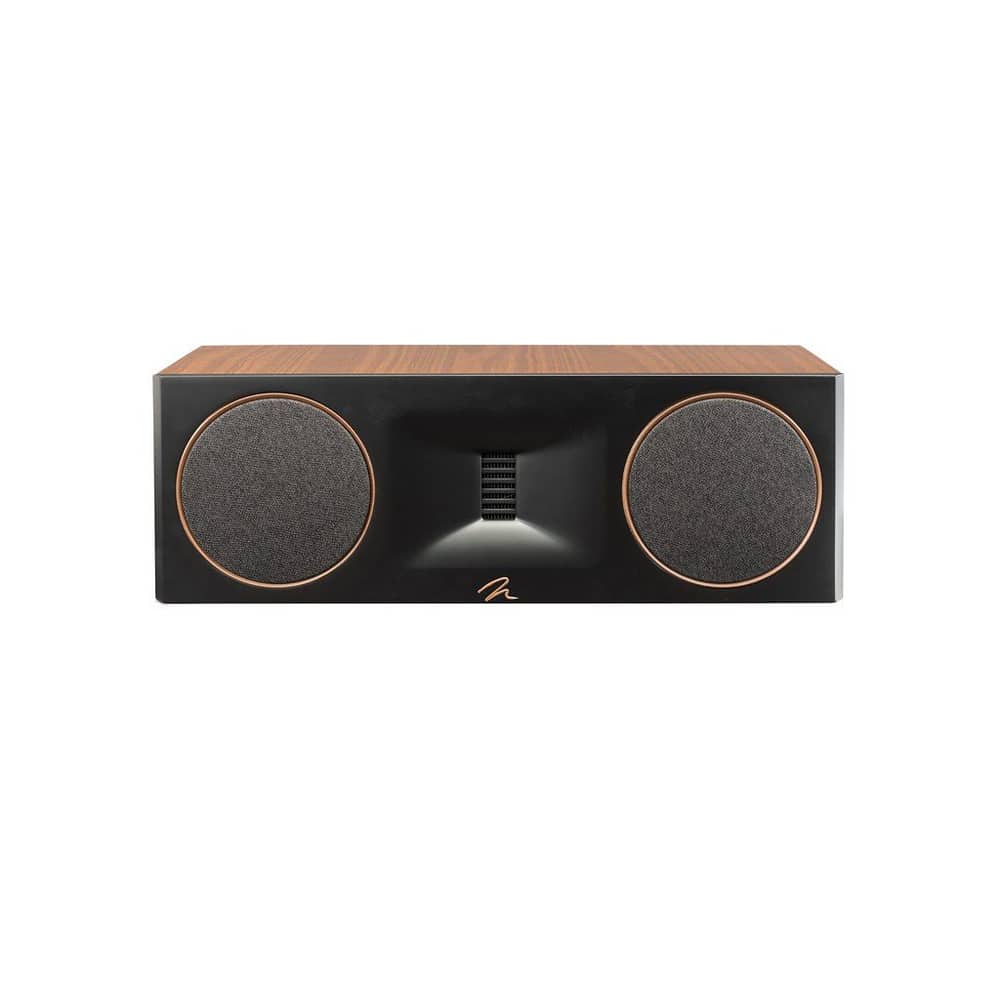

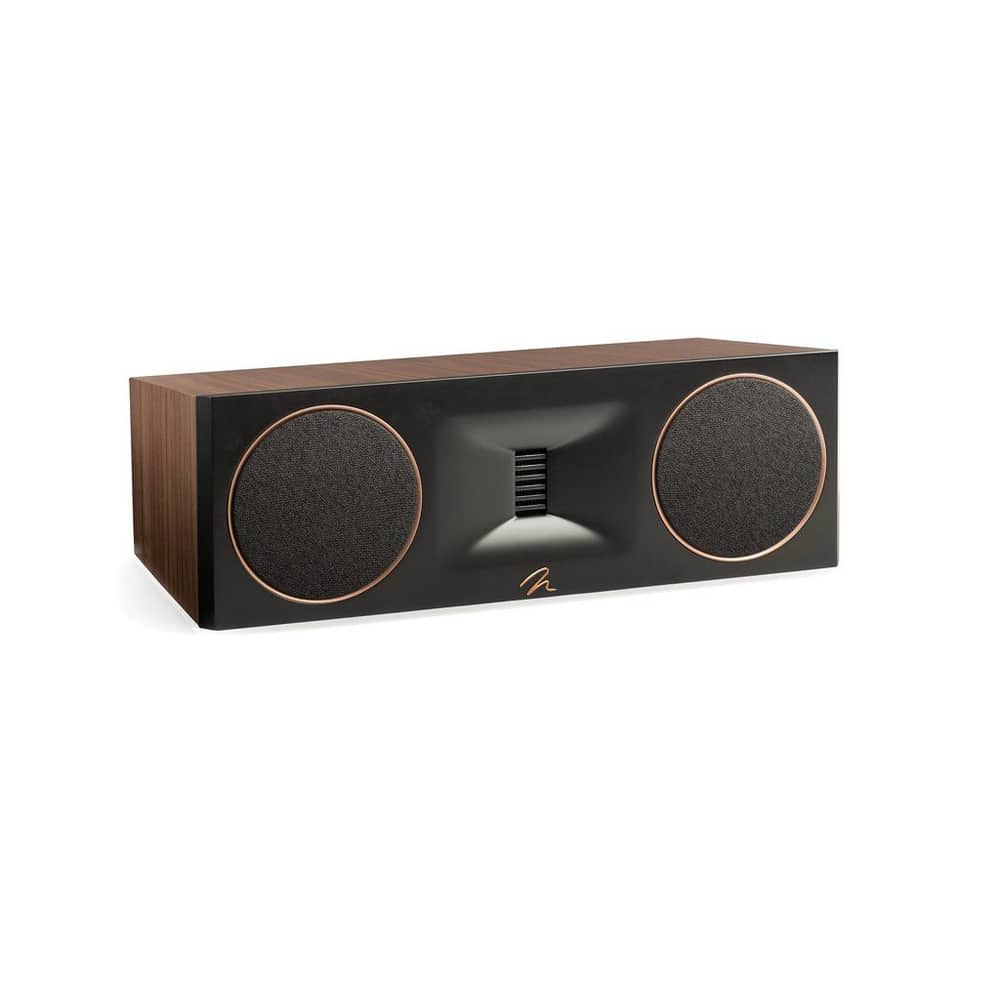

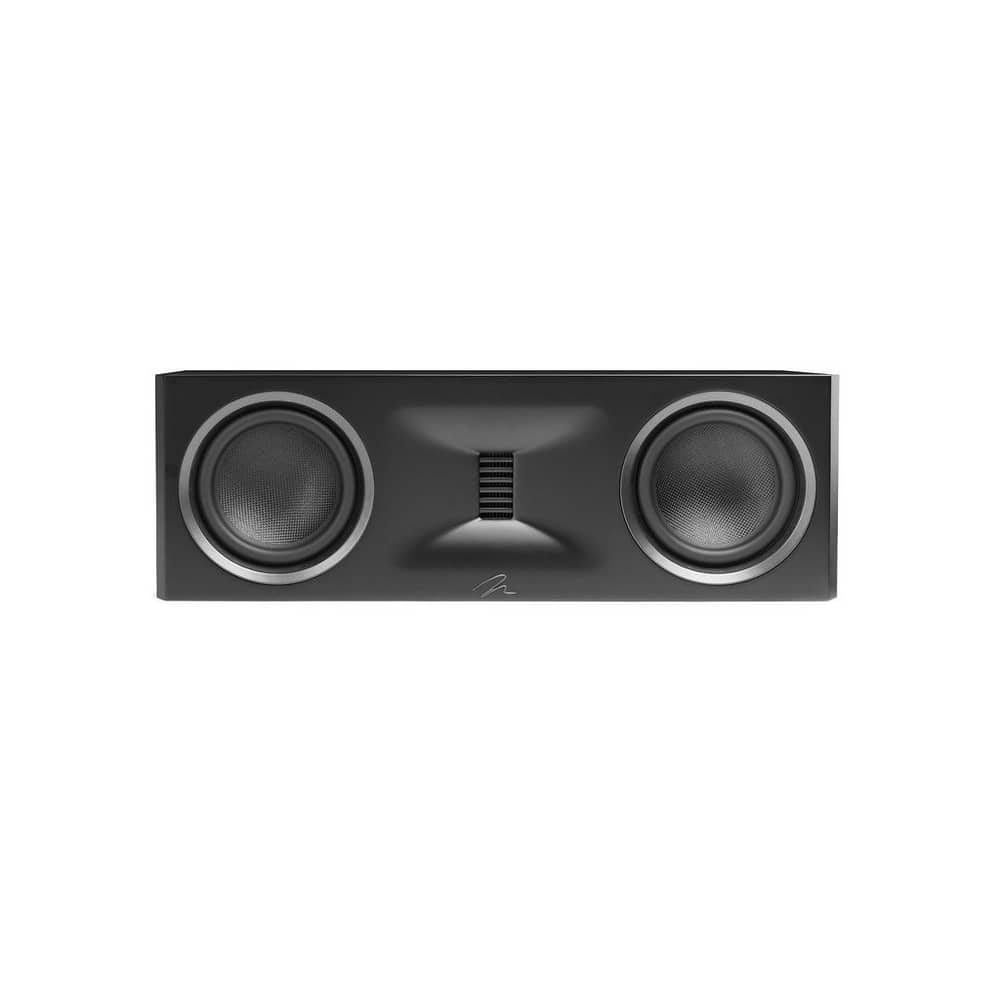

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter XT
- Folded Motion Waveguide
- Nomex-Reinforced Kevlar Midrange
- Anti-Lobing Center Channel Design
- Flippable CenterChannel Cabinet
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for The Woodlands, TX, then quote the install.
