AV 20

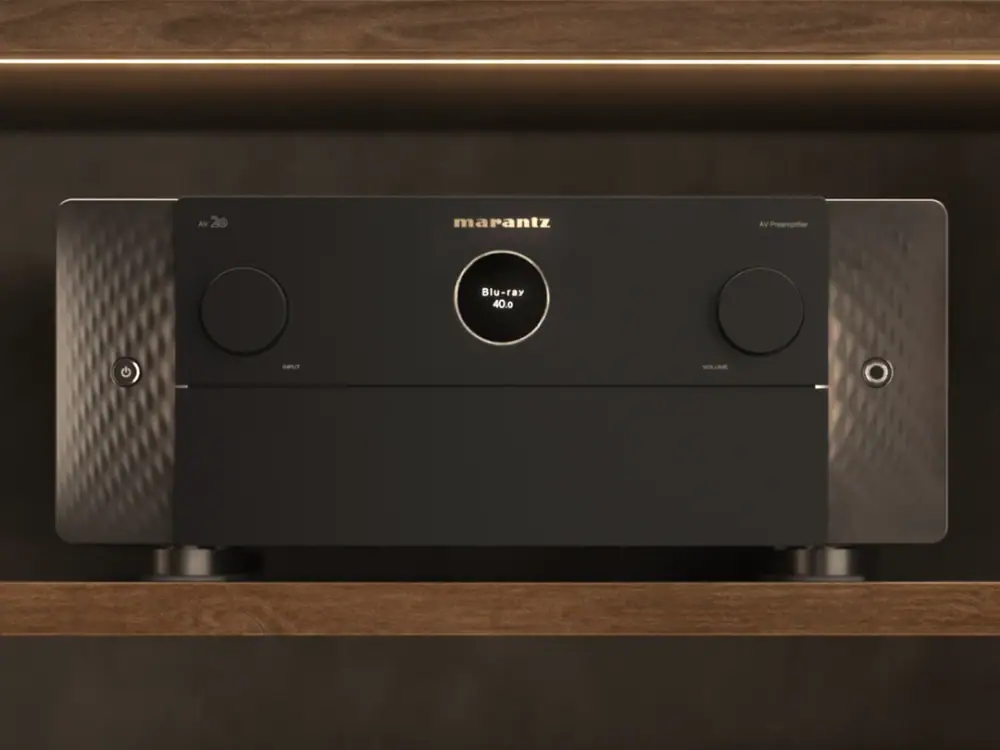

AV 20 delivers the highest measure of performance and capability for reference-level home theater systems. This 13.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry, seven 8K UHD-compatible HDMI inputs, Dolby Atmos, DTS:X Pro, AURO-3D, and four independent subwoofer outputs for advanced custom home theater installations.
MPN: 301022-01-00-101
Request a quoteTalk to the team that installs it in The Woodlands, TX. System design, screen matching and calibration included in the quote.
How we specify in The Woodlands
The Woodlands brings shaded lots, large windows and two story family rooms. Ambient light usually decides the display or screen choice, and in-wall audio placement has to work around window walls. We read the light in the room before recommending anything. For the AV 20 specifically, we confirm the fit against your room in The Woodlands, TX before quoting the install.
Service area: The Woodlands, Spring, Conroe, Shenandoah, Magnolia, Tomball, Montgomery, Oak Ridge North.
Specifications
Multichannel Surround
| DTS | DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch) |
|---|---|
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| IMAX | IMAX Enhanced |
| Auro 3D / 360 Reality Audio / MPEG H | Yes / Yes / Yes |
| Multichannel Stereo | Yes |
| Max Number of Processing (Pre-amp) Channels | 13.4 |
Sound Enhancements
| Copper-Plated Chassis / Toroidial Power Transformer | Yes / Yes |
|---|---|
| Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM) | Yes / Yes (SA3, monolithic) |
| Pure Direct / Gold-Plated RCA Terminals | Yes / Yes |
| Clock Jitter Reducer | Yes |
| Dirac Live upgradability | Yes |
| Compressed Audio Enhancer: MDAX2 | Yes |
| Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC | Yes / Yes / Yes |
| Audyssey | MultEQ XT32 |
Network
| Wi-Fi / Bluetooth / Ethernet | Yes / Yes / Yes |
|---|---|
| HEOS Multi-Room and Streaming | Yes |
| Bluetooth Retransmit for Bluetooth Headphones | Yes |
| Apple HomePod | Yes |
| Lossy formats | MP3, WMA, AAC |
| Lossless formats | FLAC, FLAC HD 192/24, ALAC, ALAC 192/24, WAV, WAV 192/24 |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| Gapless Playback | FLAC, ALAC, WAV, DSD |
| TuneIn / AirPlay 2 / Spotify | Yes / Yes / Yes |
| Roon-Ready | Yes |
| Other Streaming Services* | Amazon Music / TIDAL / Deezer / Napster / Soundcloud |
| Compatible with Remote App for Smartphones | Marantz AVR Remote |
| Compatible with Remote App for Tablets | Android / iOS / Amazon Kindle |
HDMI
| Total HDMI Inputs | 7 (rear) |
|---|---|
| HDCP2.3 Support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| HDMI Scaling | 1080P/4K to 8K |
| GUI Overlay on HDMI | Yes |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out | 7 / 2 (up to 40Gbps) |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| Enhanced ARC | Yes |
| ALLM (Auto Low Latency Mode) Pass-Through for Gaming | Yes |
| Variable Refresh Rate / Quick Frame Transport | Yes / Yes |
| HDMI Pass-Though in Standby Mode | Yes |
| DSD Audio Capability | Yes |
| Auto LipSync | Yes |

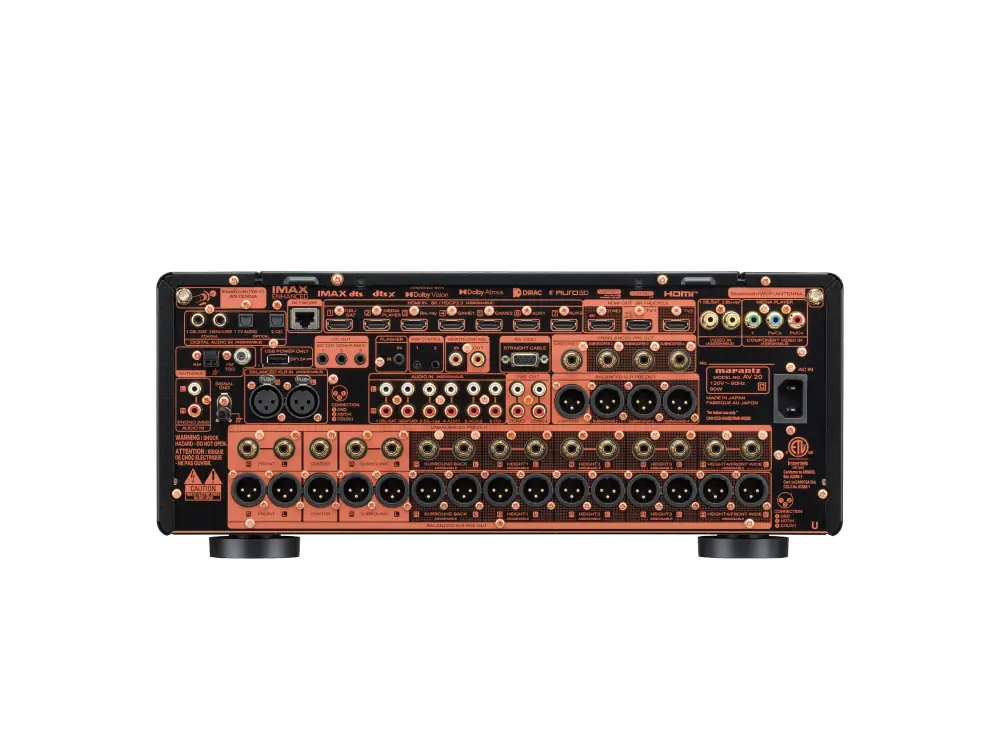

Inputs Outputs
| Composite In / Out | 2 / 0 |
|---|---|
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out: Video / HDMI | No / Yes |
| Analogue In | 6 (1x XLR) |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: analog / digital | 2 / 0 |
| Multichannel Pre-Amp Out | Yes (15.4 RCA, 15.4 XLR) |
| Subwoofer Out | 4 (independent) RCA, XLR |
| Speaker A / B | assignable pre out |
| Bi-amp drive | assignable pre out |
| Front USB Input / USB Audio | Yes / Yes |
| USB Power Supply (Rear) | Yes |
| AM/FM Tuner | Yes |
Multi-Room CI
| HEOS Multi-Room Integrated | Yes |
|---|---|
| HEOS Link Compatibility: IR/ IP | Yes / Yes |
| Multi-Room Zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue | Yes (2 ch) / Yes (2 ch) / Yes / Yes |
| Zone Audio Output: Speaker / Pre-Out | No / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes |
| IR Flasher In / Marantz Remote Bus | Yes / Yes |
| DC Trigger Output | 3 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
|---|---|

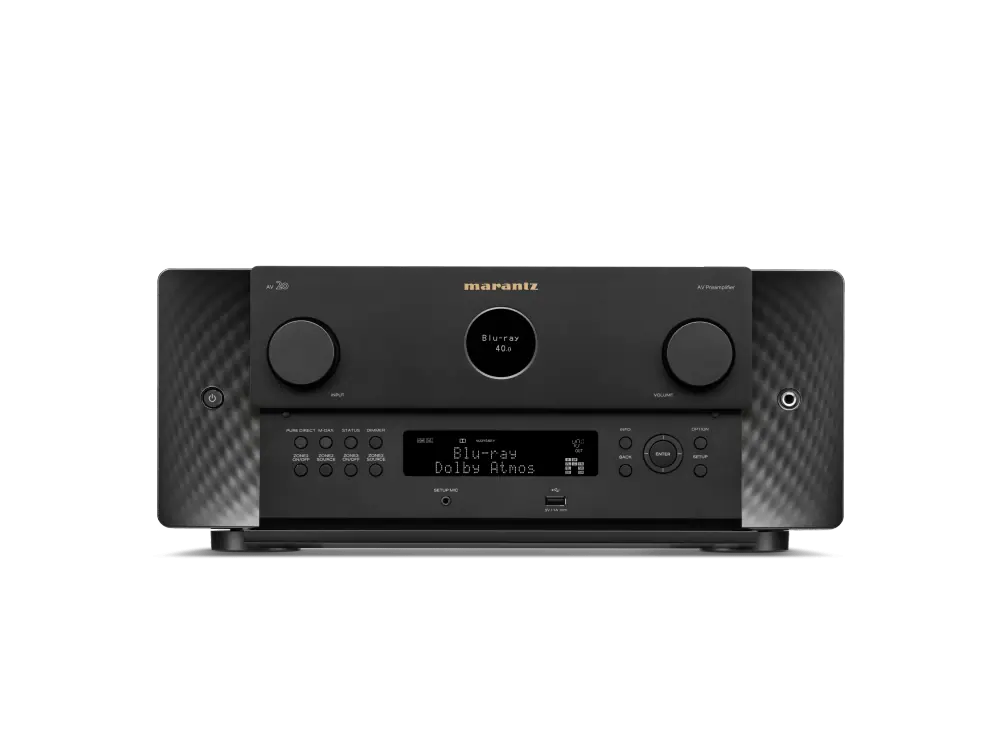

| Front Display | 2-Line FLD, Port Hole OLED |
| Graphic User Interface - GUI | Modern HD GUI |
| GUI Languages | 3 |
| Setup Assistant / Smart Select | Yes / Yes |
| Firmware Update by Network / USB | Yes / Yes |
| Variable Cross Over / Optimized Bass Redirection / Bass Sync | Yes / Yes / Yes |
| Auto Power Off / Sleep Timer | Yes / Yes |
General
| Metal Front Panel | Yes |
|---|---|
| System Remote Control | RC051SR |
| Backlit | Yes |
| Power Consumption | 90 W |
| Standby Consumption | 0.2 W |
| CEC Standby Consumption in W | 0.5 W |
| Network Standby Consumption | <2.0 W |
| Maximum Dimensions Antenna:Horizontal:(W x D x H) Antenna:Vertical :(W x D x H) W/o Antenna:(W x D x H) | 17.4 x 18.0 x 7.5 in. 17.4 x 18.0 x 10.0 in. 17.4 x 17.2 x 7.5 in. |
| Weight | 33.1 lbs. |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
| UPC Code | 747192143848 |
Features
- Meticulously crafted with authentic materials
- 13.4 Channels
- 7 HDMI Inputs plus eARC
- 8K and Dolby Atmos
- 3D Audio
- HEOS Built-In
