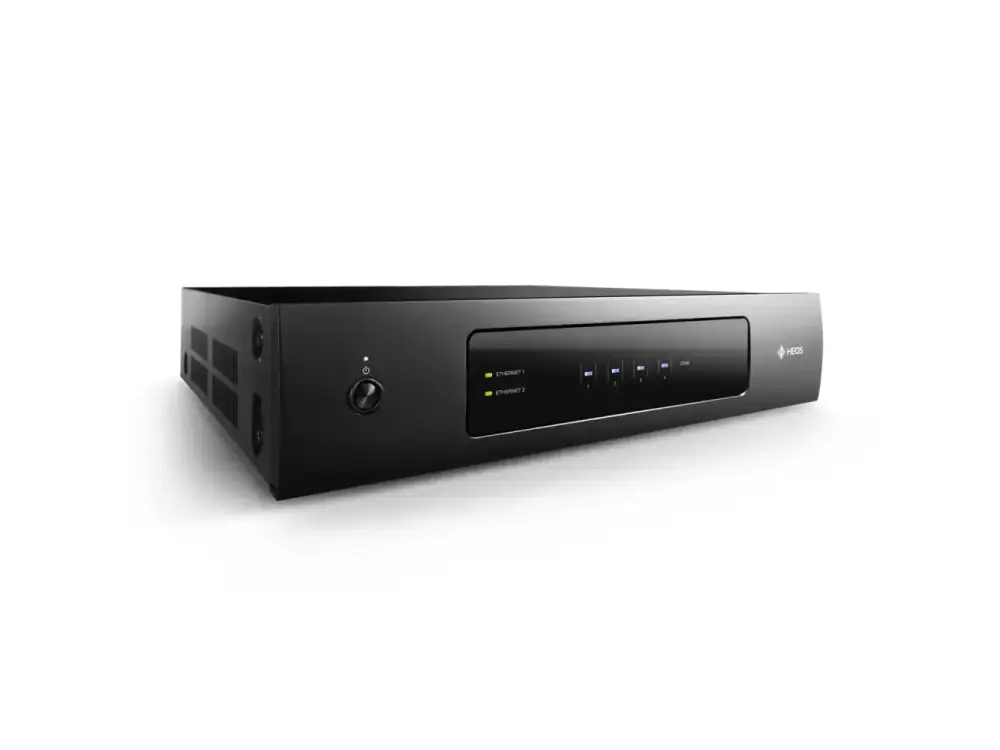

Denon HEOSDRIVEHS2
Equipment Sales & Professional Installation
MPN: HEOSDRIVEHS2
- Four independent HEOS zones
- 8-channel Class D, 60W/ch
- Pre-amp outputs per zone
- Alexa voice integration
- Matrix switching across 8 inputs
- Dolby Digital decoding
- 192/24 high-res playback
Specifications
Specifications
| Amplifier | 8 channels Class D digital amplification, 60 watts per channel (20Hz-20kHz, 0.05% THD, 8 ohms, all channels driven) |
|---|---|
| Bridged Amplifier Mode | 130 watts per channel |
| Pre-amp Section | 4 pairs stereo pre-amp outputs to drive external power amplifiers |
| USB Ports | 4 (1 per zone) |
| Inputs | 2 fiber optic, 2 digital coax, 4 analog (matrix switching) |
| 12V Trigger Outputs | 4 |
| Ethernet | 2 RJ-45 wired LAN ports |
| Music Formats Supported | WMA, AAC, MP3 up to 320kbps; ALAC, WAV, FLAC up to 24-bit/192kHz; DSD 2.8MHz and 5.6MHz |
| Dolby Digital | Dolby Digital and Dolby Digital+ decoding with stereo downmixing |
| Power Supply | 100-240 Volts AC, 50-60 Hz auto-switching |
| Dimensions (H x W x D) | 3.5 x 17 x 15.6 in (without rack ears); 3.5 x 19.125 x 15.6 in (with rack ears) |
| Rack Height | 2U (3.5 in, with feet removed) |
| Weight | 15.9 lbs |
| Product Finish | Black |
