Definitive Technologysubwoofers
Definitive Technology DN8
Equipment Sales & Professional Installation
MPN: DN8
- 8" Long-Throw Woofer
- Dual 8" Passive Radiators 3XR Configuration
- As Low As 35Hz (+/- 3 dB)
- Class D Digital Amplifier

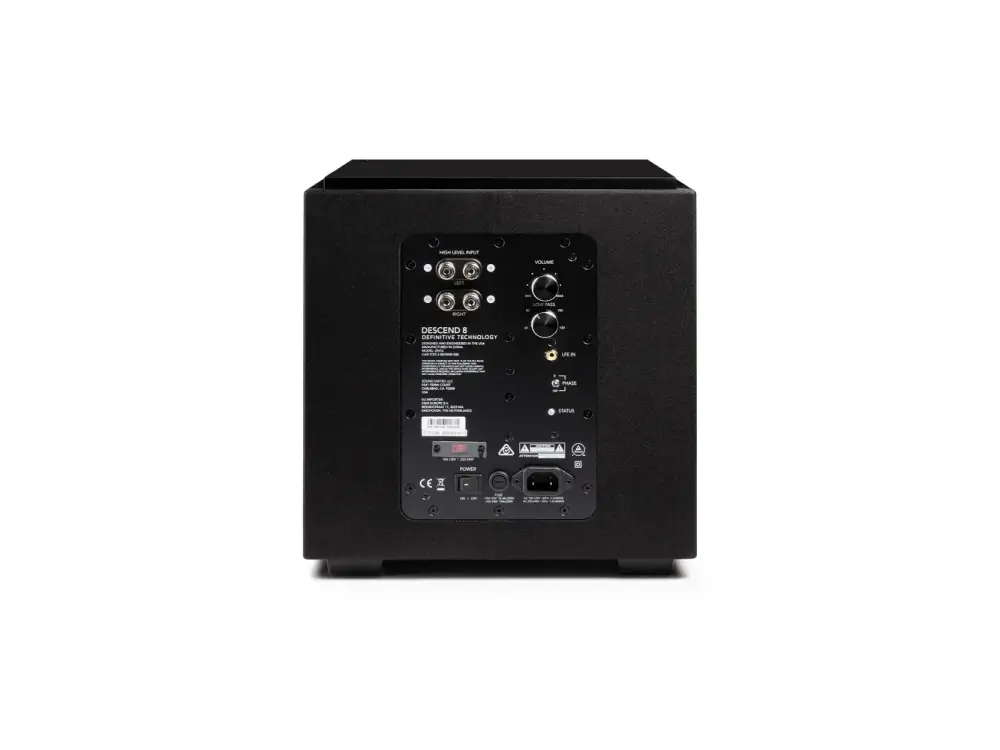

- Back Panel Controls
Specifications
Description Overall
| Colors | Glacier White & Midnight Black |
|---|---|
| Transducers | 8" long-throw woofer |
| Passive radiators | Dual 8" 3XR Configuration |
| Bass type | Bass Radiator |
| Feet | Permanently Installed Feet with Rubber Pad |
| Dimensions | 12.8" x 12.0" x 13.1" 324.8 x 305.8 x 331.6 mm |
| Amplifier type | Class D |
| Frequency response (-/+ 3dB) | 35 Hz 200 Hz |
| Low-Pass crossover freq | 60 Hz 120 Hz |
| Phase adjustment | 0 / 180 deg |
| Power supply | Internal IEC-C18: 2 prong inlet 120V/240V switch (covered) |
| Europe (<.5W Compliance) | Yes |
| LFE | Single RCA |
| Speaker | Left/Right 5-way binding posts |
| Main power | Auto/Off |
| Volume control | Potentiometer w/ center detent |
| Low pass control | Potentiometer w/ center detent |
| Phase control | 2-way switch |
| Status RGB LED | On back panel |
| Warranty | Drivers 5 years. Amplifier 3 years |
