Definitive Technologysubwoofers
Definitive Technology DN10
Equipment Sales & Professional Installation
MPN: DN10
- 10" Long-Throw Woofer
- Dual 10" Passive Radiators 3XR Configuration
- As Low As 28Hz (+/- 3 dB)
- Class D Digital Amplifier

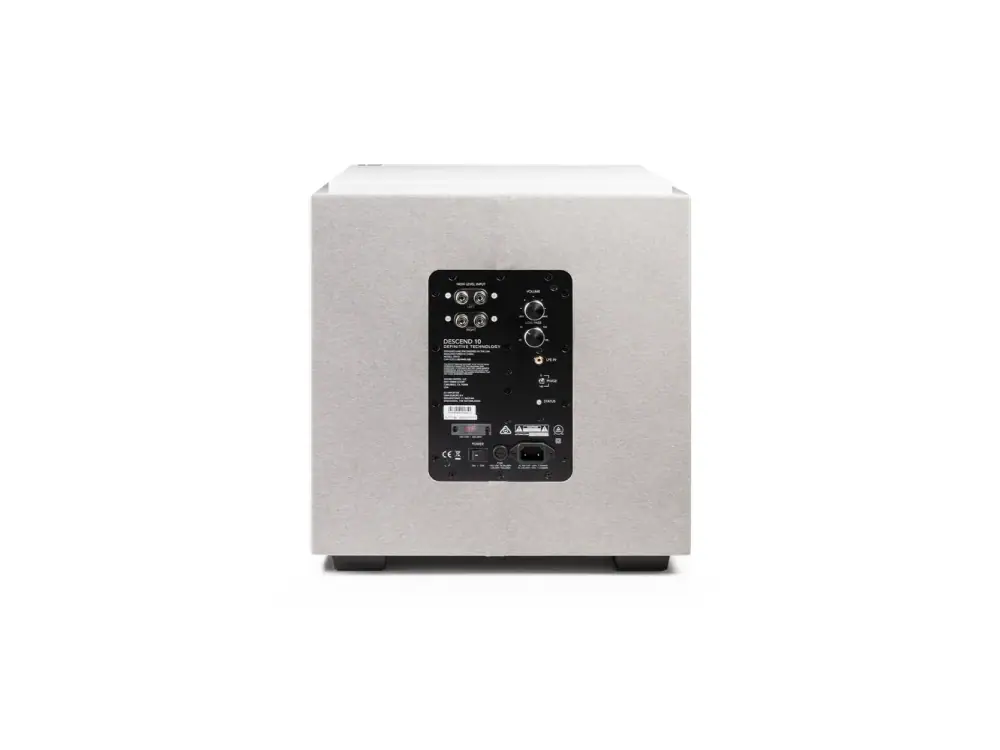

- Back Panel Controls
Specifications
Description Overall
| Colors | Glacier White & Midnight Black |
|---|---|
| Transducers | 10" long-throw woofer |
| Passive radiators | Dual 10" 3XR Configuration |
| Bass type | Bass Radiator |
| Feet | Permanently Installed Feet with Rubber Pad (no leveling) |
| Dimensions | 16.8" x 16.0" x 17.1" 425.4 x 407.4 x 433.2 mm |
| Amplifier type | Class D |
| Frequency response (+/- 3 dB) | 28 Hz 200 Hz |
| Low-Pass crossover freq | 60 Hz 120 Hz |
| Phase adjustment | 0 / 180 |
| Power supply | Internal IEC 3 prong Jack 120V/240V switch |
| Europe (<.5W Compliance) | Yes |
| LFE | Single RCA |
| Speaker | Left/Right 5-Way binding posts |
| Main power | Auto/Off |
| Volume control | Potentiometer w/ center detent |
| Low pass control | Potentiometer w/ center detent |
| Phase control | 2-way Switch |
| Status RGB LED | On back panel |
| Warranty | Drivers 5 years. Amplifier 3 years |
