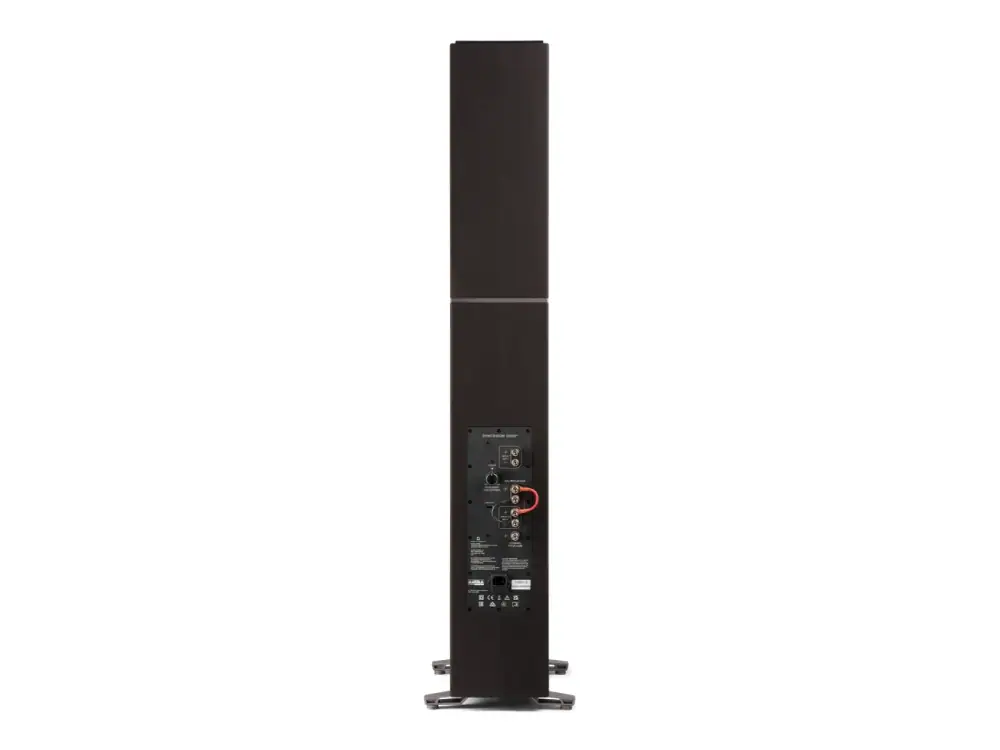

Definitive Technology DM80
Equipment Sales & Professional Installation
MPN: DM80
- Fully Balanced, Adjustable Bipolar Array
- Four 5.25" BDSS Midrange Woofers with Linear Response Waveguide
- Built-in 12" Powered Subwoofer & Dual 12" Bass Radiators
- 3XR Architecture
- Dual 1" Aluminum Oxide Dome Tweeters
- DM90 Integrated Height Module Option
Specifications
Specifications
| Dimensions (H x W x D) | 49.4 x 11.3 x 16.0 in. (1255 x 287 x 407 mm) with outriggers attached 55.4 x 11.3 x 16.0 in. (1407 x 287 x 407 mm) w/ optional DM90 height module, sold separately |
|---|---|
| Weight | 83.1 lbs (37.7 kg) |
| Color | Black |
| Grille material | Acoustically transparent black cloth (not removable) |
| Tweeter | (2) 1 in. aluminum oxide domes |
| Midrange/Midbass | (4) 5.25 in. BDSS with Linear Response Waveguide |
| Bipolar array | Fully balanced, adjustable |
| Bipolar array adjustment | Fully bipolar (default), forward focus -6dB, variable via bi-amping |
| Subwoofer system driver complement | (1) 12 in. subwoofer (2) 12 in. passive radiators |
| Frequency response | 23 Hz-30 kHz (-10dB) 28 Hz-23 kHz (-3dB) |
| Nominal impedance | 4 ohm (8 ohm compatible) |
| Sensitivity | 90dB (2.83V/1m) |
| Recommended amplifier power rating | 50-300W |
| Intelligent bass control | Variable +/- 12dB |
| Warranty | Drivers 5 years/Amplifier 3 years |
| Included accessories | (4) Adjustable hard floor glides (4) Adjustable carpet spikes |
