Crown Audioamplifiers

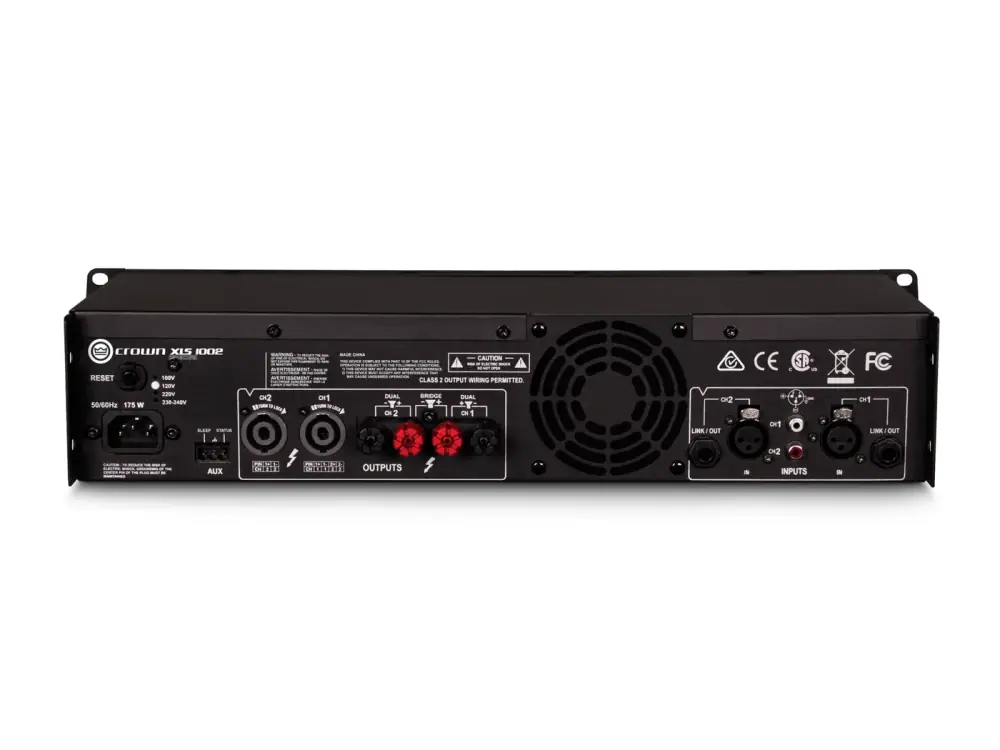

Crown Audio XLS 1002
Equipment Sales & Professional Installation
MPN: XLS 1002
- Class D DriveCore technology in a sub-11 lb chassis.
- Band-pass filter per channel for advanced DSP control.
- Selectable 1.4Vrms / .775Vrms input sensitivity.
- Configurable sleep mode and remote power trigger.
- Peakx limiters maximize output while protecting speakers.
- XLR, 1/4", and RCA inputs.
- Integrated PureBand crossover system.
Specifications
Specifications
| Frequency Response | +0dB, -1dB |
|---|---|
| Signal to Noise | > 97dB (at .775Vrms sensitivity, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz: > 85dB, At 20kHz: > 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) |
| Weight | 8.6 lbs (3.9 kgs) |
