Crown Audioamplifiers

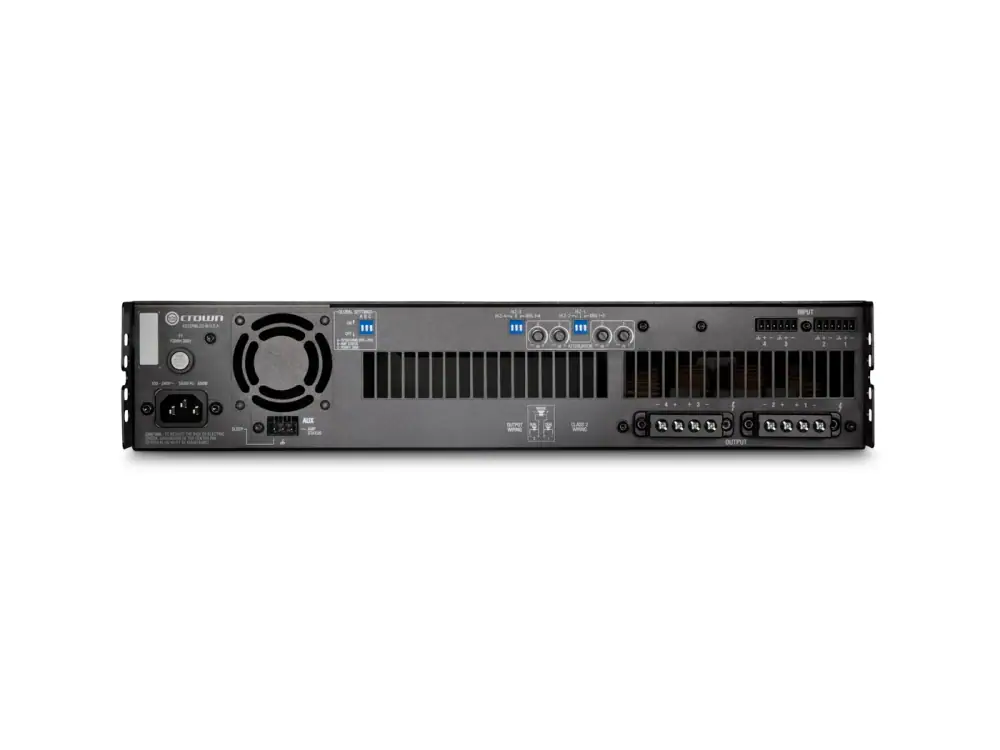

Crown Audio DCI 4|300
Equipment Sales & Professional Installation
MPN: DCI 4|300
- 2 RU chassis, up to 600W per channel in 2-, 4-, or 8-channel configurations.
- Direct-drive 70V/100V operation — no step-up transformer needed.
- Channel-independent Hi-Z/Lo-Z selection.
- Bridgeable channel pairs, even in 100Vrms mode.
- Remote on/off interface for control-system integration.
- Efficient forced-air cooling with front-to-back airflow.
- Advanced power-factor-corrected universal power supply.
Specifications
Specifications
| Output Channels | 4 |
|---|---|
| Frequency Response (8 ohm, 20Hz - 20kHz) | +/-0.25dB |
| Total Harmonic Distortion (at full rated power, 20Hz - 20kHz) | 0.35% |
| Damping Factor (20Hz to 100Hz) | >1000 |
| Load Impedance (Stereo/Dual Mode) | 2 ohm - 16 ohm; 70Vrms and 100Vrms |
| Load Impedance Bridge Mono | 4 ohm - 16 ohm; 140Vrms and 200Vrms |
| Cooling | Continuously variable speed forced air, front to back airflow |
| Maximum Fan Noise (re dBA SPL @ 1M) | 45 |
| Required AC Mains (+/-10%) | 100V-240V ~ 50/60Hz |
| Power Connector | 15A IEC |
| Dimensions (W x H x D) | 483 mm x 89 mm x 362 mm 19 in x 3.5 in x 14.25 in |
| Weight | 9.12 kg (20.1 lbs) |
